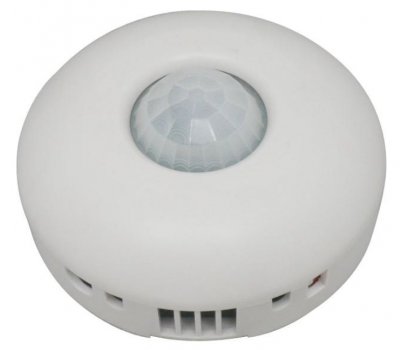

Motion sensor DALI with Lighting sensing

Passive infrared DALI detector with light sensing

• Aestetical look
• Easy mount
• Powered by DALI bus
• Lighting sensing
• High sensitivity PIR sensor

A passive infrared detector on DALI system with lighting sensing.

• Do not install the detector at position which faces direct or reflected sunlight or near windows with direct car headlight.

• Ensure that there are no obstructions (plants, screens, furniture etc.) in the field of view that may cause incorrect cover/operation of the detector.

• Avoid locating the detector in areas that contain equipment that may change the environment temperature rapidly (i.e. above radiator or under the air-conditioner)

• Install the detector at proper height on a rigid surface. Do not install the detector on vibrating surface.

• PIR detector is more sensitive to the motions “across” the detection zones than “toward” or “away”.
