Power supply
24 V DC / 2.5 A power supply
| Model number: | PS-60-24 |
|---|---|
| Mounting: | DIN rail |
| Dimensions: | 93 x 78 x 56 mm |
Highlights & Features
- Universal AC input voltage and full power up to 50°C
- Efficiency > 84.0% @ 230Vac
Technical specification
| Input voltage range | 90 - 264 VAC |
| Output voltage | 24 VDC |
| Output current | 2.50 A |
| Rated Current | 60W |
| Voltage adj. range | +-10% |
| Voltage tolerance | +-1% |
| Input current | 0.65A @ 230Vac |
| Operating temperature | -20°C to +50°C; 20% to 90% RH |
| Storage temperature | -40°C to +85°C; 10% to 95% RH Non condensing |

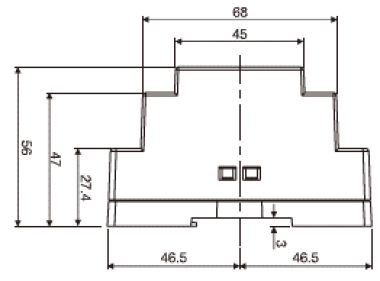

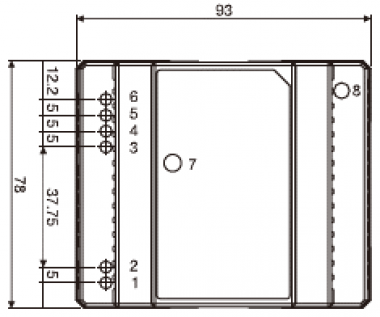

Dimensions
Pin assignment
Safety Standards
- UL60950-1
- TUV EN60950-1
- EN50178
