Wireless touch wall button
Wall glass finish touch button
| Model: | LC-WxB-y |
|---|---|
| Gang number: | x: 1 or 2 or 3 |
| Colour: | y: 01-black, 02-white, 03-gold, C-custom |
| Connects: | MC via LC-W12 |
| Mounting: | On wall |
Applications
- Touch switching
- Wireless control
Features
- Aestetical look
- Easy mount
- Pleasant feel
- Scene control - One key to control multiple devices
Technical specifications
| Control mode | Touch |
| Material | Panel: toughened glass; Shell: fire retardant PC |
| Key life | 100,000 cycles |
| Dimension | 86 x 86 x 10 mm |
| Power | Battery 12 V type 27A |

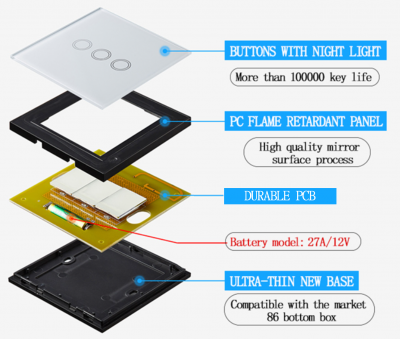

Build

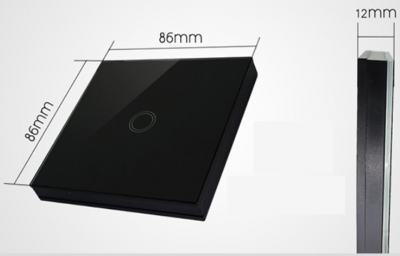

Dimensions
