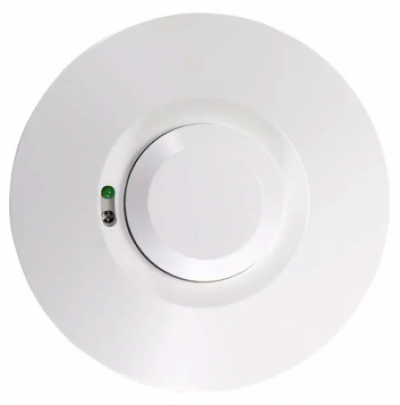

Motion sensor
Microwave detector on wall or ceiling
| Model number: | MW-A18-SA |
|---|---|
| Connects to: | Lighting circuit |
| Mounting: | Wall or ceiling |
| Dimensions: | 94mm x 42mm |
Applications
- Motion detector
- Ready light
- Lighting control
- Hotel GRMS
Features
- Aestetical look
- Easy mount
Installation instruction
- Ensure that there are no obstructions (plants, screens, furniture etc.) in the field of view that may cause incorrect cover/operation of the detector.
- Install the detector at proper height on a rigid surface. Do not install the detector on vibrating surface.
Technical specifications
| Power supply | 230 VAC |
| Temperature | -20°C ~ 40°C |
| Humidity | < 93% |
| Range | 2-18 m (Adjustable) |
| Installing height | Max. 3.5 m |
| Power frequency | 5.8 GHz +/- 75MHz |
| Ambient light | 10~2000LUX (Adjustable) |
| Detection | 360 deg |
Terminals
| Power | L | Live |
|---|---|---|
| Signal | N | Neutral |
| Power supply | L OUT | Lighting circuit |
