2 relay outputs 16 A

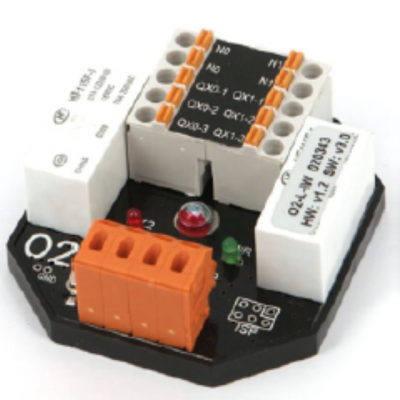

| Model number: | O2-IQ |
|---|---|
| Mounting: | in-wall, in junction box behind scene buttons |
| Dimensions: | 50×50×15mm |
Applications
- remote lighting circuts
- remote sockets or blinds
Features
- 2 relay outputs 16 A
- 2 mains sense inputs * configurable button action:
General description
O2 is in wall compact remote input module. Any kind of push-button design can be used.
Technical specification
| Outputs: | relay 16 A/250 VAC resistive |
| Power supply: | 24V/60mA |
| Ingress protection: | IP20 |
| Operating temperature: | 0..45°C |
| Storage temperature: | -20..75°C |
| Relative humidity: | 0..95% n/c |
| Standards: | EN 60730-1 |

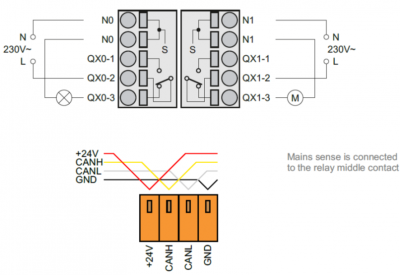

Terminals
