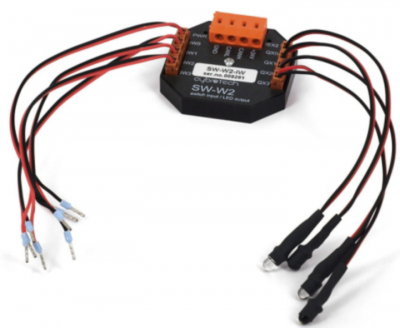

4 switch or potentiometer input
| Model number: | SW-W3-IQ |
|---|---|
| Mounting: | in-wall, in junction box behind scene buttons |
| Dimensions: | 50×50×15mm |
Applications
- 4 Push buttons or Motion sensor inputs
- Individual light / dimmer button
- Blinds up/down button
Features
- configurable button action:
- on/off
- dimmer push button (on/off and 0..100%)
- blinds up/down
General description
SW-W3-IQ is in wall compact remote input module. Any kind of push-button design can be used.
Technical specification
| LED outputs: | 10 mA, PWM dimmable |
| Inputs: | internal pull-up 12V, 2 mA |
| 0..10 V (10 bit, 0..1023) or potentiometer | |
| Power supply: | 24V/35mA |
| Ingress protection: | IP20 |
| Operating temperature: | 0..45°C |
| Storage temperature: | -20..75°C |
| Relative humidity: | 0..95% n/c |
| Standards: | EN 60730-1 |

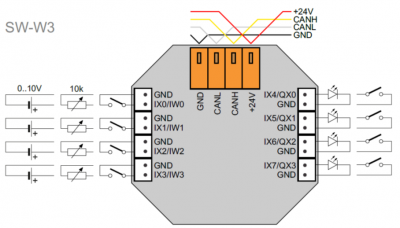

Terminals
