Touch thermostat
Touch electronic thermostat
| Model number: | TH-G-01M |
|---|---|
| Mounting: | In-wall flush box |
| Dimensions: | 86×86×40 mm |
Applications
- room / zone thermostat
Features
- cooling/heating
- fan options:
- 3 speed
- hand/auto
- weekly
- on/off valve control
- dimmed when no presence
- Modbus optional
General description
Can be used for any heating and/or cooling system including: fan-coils, hot water or electrical radiators, ceiling fans, floor/ceiling heating/cooling, split AC. TH series provide maximum comfort and energy saving functionality. Set-points are selectable on the unit or through other devices. Advanced functionality including smart-phone operation, internet operation, scheduling, HIQ automations, automatic weather response and more are provided when connected to HIQ Home Controller and HIQ universe.
Technical specification
| Power supply: | 95-240V,50/60Hz |
| Ingress protection: | IP20 |
| Operating temperature: | 0..55°C |
| Storage temperature: | -20..75°C |
| Relative humidity: | 0..95% n/c |
| Installation box: | EU 60 Round box Or 86 Box |
Dimensions

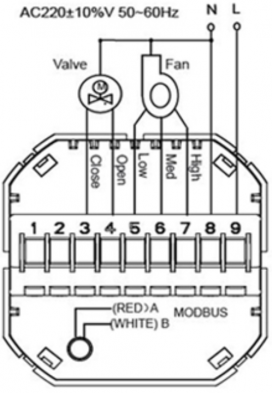

Terminals
