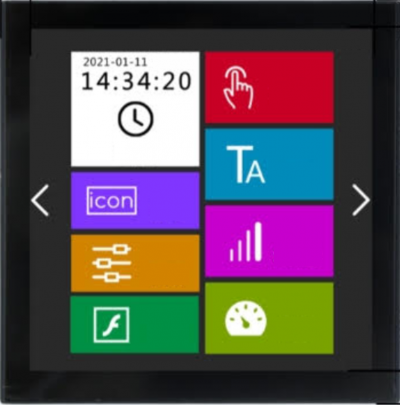

Touch panel 4 inch
| Model number: | TGP-4A-01-IQ |
|---|---|
| Mounting: | In-wall, 86 box |
| Dimensions: | 86 x 86 x 39 mm |
| Connection: | RS485 to HIQ MC controller |
| Frame colour: | Black |
Applications
- Home automation
- Lighting control
- Hotel GRMS
- Monitoring and control
Technical specifications
| System | Display | TFT 4“ 480 × 480 |
| Touch | Capacitive, | |
| Brightness (cd/m²) | 250 | |
| Contrast | 800:1 | |
| Colour | 65K colour, 16-bit RGB | |
| Power | Supply | 5-36V DC |
| Power | Consumption | ≤ 3.2 W |
