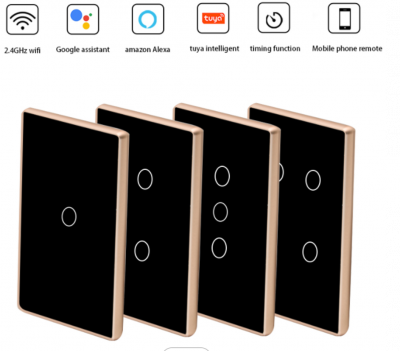

Wireless touch wall switch
Wall glass finish touch switch with relay output
| Model: | TSW-L1D-y |
|---|---|
| Colour: | y: W-white, B-black, G-gold, C-custom |
| Connects: | app, lighting circuit |
| Mounting: | In wall |
Applications
- Touch switching
- Wireless switch via phone app
Features
- Aestetical look
- Easy mount
- Pleasant feel
- Scene control - One key to control multiple devices
- APP support - smart life or tuya smart app
- Share Control on several smart phones
- Voice control via Alexa or Google home
Technical specifications
| Input | AC 100-250 V, 50/60 Hz |
| Output | 500 W/gang (resistive load); 200 W/gang (LED) |
| Wireless standard | IEEE 802.11b/g/n; 2.4 GHz |
| Control mode | APP/Touch/Voice control (Amazon Alexa, Google home…) |
| Material | Panel: toughened glass; Shell: fire retardant PC |
| Output contact rating | 100,000 cycles |
| Operating system | Compatible with ios and Android |
| Dimension | 86 x 86 x 35 mm |

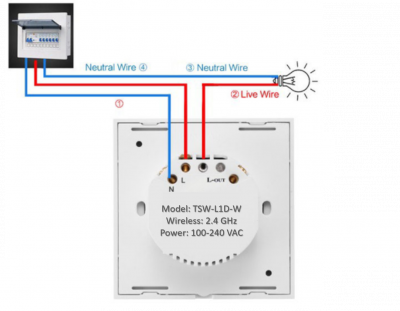

Terminals
