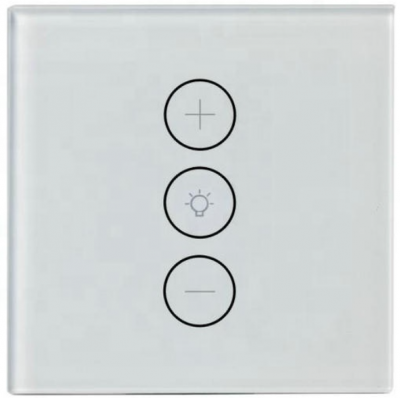

Wireless touch wall switch

Wall glass finish touch switch with relay output

Model: TSW-L1D-y
Colour: y: W-white, B-black, G-gold, C-custom
Connects: app, lighting circuit
Mounting: In wall


Applications

  • Touch switching
  • Wireless switch via phone app


Features

  • Aestetical look
  • Easy mount
  • Pleasant feel
  • Scene control - One key to control multiple devices
  • APP support - smart life or tuya smart app
  • Share Control on several smart phones
  • Voice control via Alexa or Google home

Technical specifications

Input AC 100-250 V, 50/60 Hz
Output 500 W/gang (resistive load); 200 W/gang (LED)
Wireless standard IEEE 802.11b/g/n; 2.4 GHz
Control mode APP/Touch/Voice control (Amazon Alexa, Google home…)
Material Panel: toughened glass; Shell: fire retardant PC
Output contact rating 100,000 cycles
Operating system Compatible with ios and Android
Dimension 86 x 86 x 35 mm

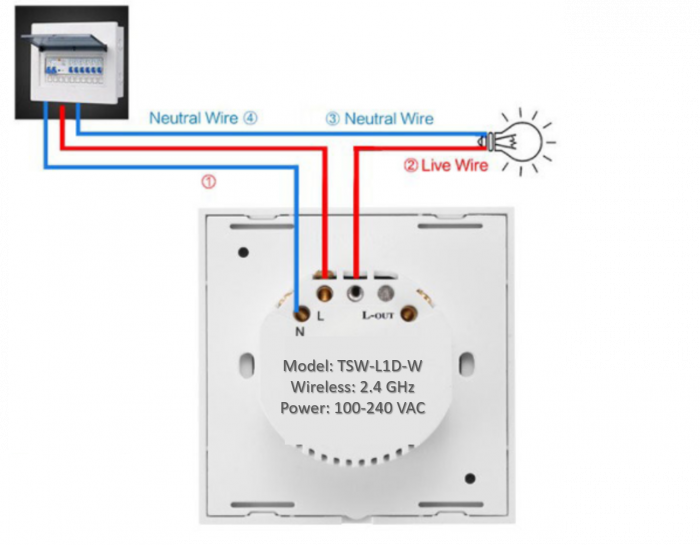

Terminals
