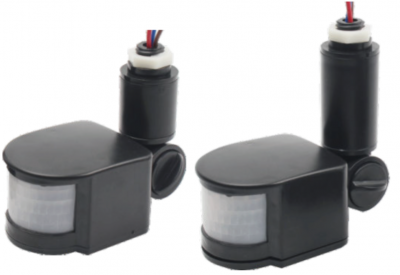

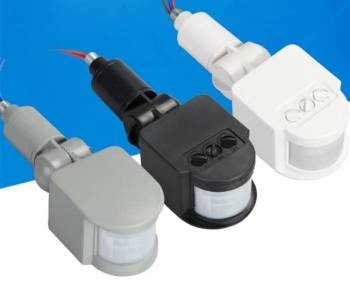

Motion sensor

Passive infrared detector long range

Model number: IR-A12W-LC
Connects to: digital input
Mounting: Any
IP rating IP65


  • Motion detector
  • Intrusion detector
  • Corridors lighting control
  • Parking lighting control
  • Outdoor lighting control


  • Robust design


Installation instruction

  • Do not install the detector at position which faces direct or reflected sunlight or near windows with direct car headlight.
  • Ensure that there are no obstructions (plants, screens, furniture etc.) in the field of view that may cause incorrect cover/operation of the detector.
  • Avoid locating the detector in areas that contain equipment that may change the environment temperature rapidly (i.e. above radiator or under the air-conditioner)
  • Install the detector at proper height on a rigid surface. Do not install the detector on vibrating surface.
  • PIR detector is more sensitive to the motions “across” the detection zones than “toward” or “away”.

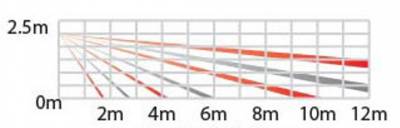

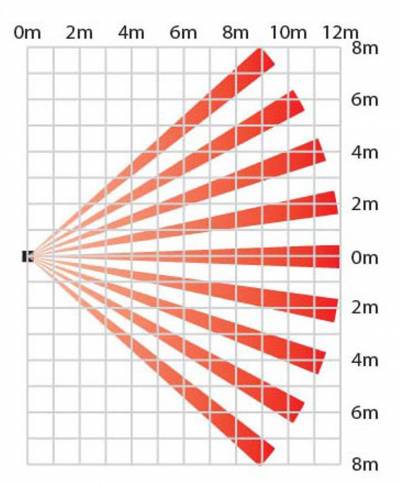

Detection pattern and range

Technical specifications

Power supply 24 VDC
Power consumption 0.1 - 1 W
Temperature -20°C ~ 40°C


Power supply + Power supply
HIQ digital input S Digital output
