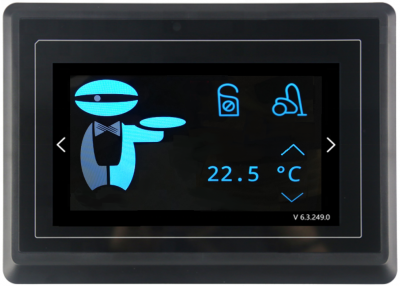

Touch HMI panel
| Model number: | TGP-7A-01-IQ |
|---|---|
| Mounting: | In-wall |
| Connection: | RS485 to HIQ MC controller |
| Frame colour: | Black |
Applications
- Home automation
- Lighting control
- Hotel GRMS
Technical specifications
| Power supply: | 5-36V DC |
| Display: | TFT 7.0 inch |
| Resolution: | 1024 × 600 |
| Brightness (cd/m²: | 230 |
| Contrast: | 800:1 |
| Colour: | 65K colour, 16-bit RGB |
| Active Area L x W : | 153.7mm x 86.2mm |
| Installation : | support rotation 0°/90°/180°/270° |
| Touch type : | capacitive |
| Communication : | RS485 (to MC Controller or Cybro) |
| Operating temperature : | -20°C to 70°C |
Dimensions
