Adapting CyBro PLC application to HIQ commander
HIQ commander can be used without HIQ HW and FW, simply by using variables recognized by HIQ commander in custom CyPro project.
General
| condition | program_id=3 |
|---|

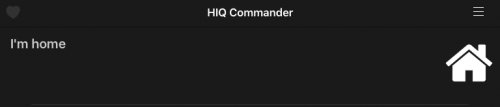

I'm home
| condition | none | ||
|---|---|---|---|
| object | Manual presence indicator | ||
| id | p00 | ||
| name | “I'm home” | ||
| description | “/” | ||
| variable | toggle | presence_indicator | r/w; 0=off, 1=on |
| parameters | / | ||

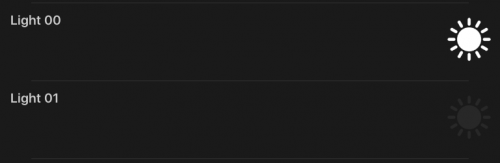

On / Off
| condition | lc00_general_error=0 (lc00..lc09) | ||
|---|---|---|---|
| object | 10x light | ||
| id | l00..l99 | ||
| name | “Light 00”..“Light 99” | ||
| description | “Lights on/off control” | ||
| variable | toggle | lc00_qx00 | lc00..lc09, qx00..qx09; r/w; 0-off, 1-on |
| parameters | / | ||

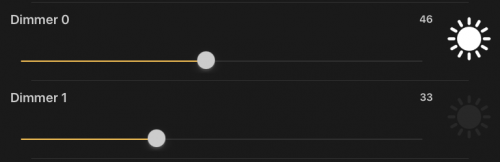

Dimmer
| condition | ld00_general_error=0 & ld00_rgb_mode=0 (ld00..ld09) | ||
|---|---|---|---|
| object | 4x dimmer | ||
| id | d00..d39 | ||
| name | “Dimmer 0”..“Dimmer 39” | ||
| description | “On/off and lightness control” | ||
| variable | toggle | ld00_qx00 | ld00..ld09, qx00..qx03; r/w; 0=off, 1=on |
| slider | ld00_qw00 | ld00..ld09, qw00..qw03; r/w; 0=min, 100=max | |
| parameters | / | ||

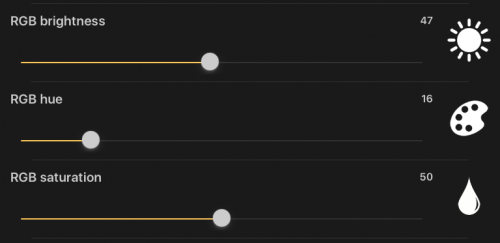

RGB Dimmer
| condition | ld00_general_error=0 & ld00_rgb_mode=1 (ld00..ld09) | ||
|---|---|---|---|
| object | 3x dimmer | ||
| id | r00..r29 | ||
| name | “RGB brightness” | ||
| description | “RGB brightness and on/off” | ||
| variable | toggle | ld00_qx00 | ld00..ld09, qx00..qx03; r/w; 0=off, 1=on |
| slider | ld00_qw00 | ld00..ld09, qw00..qw03; r/w; 0=min, 100=max | |
| name | “RGB hue” | ||
| description | “RGB color control” | ||
| variable | toggle | ld00_qw01 | ld00..ld09; r/w; 0–>16–>33–>50–>66–>83–>100–>0 |
| slider | ld00_qw01 | ld00..ld09; r/w; range 0..100, step 1 | |
| name | “RGB saturation” | ||
| description | “RGB saturation: 0..50-white mode, 50..100-color saturation” | ||
| variable | toggle | ld00_qw02 | ld00..ld09; r/w; 0–>25–>50–>75–>100–>0 |
| slider | ld00_qw02 | ld00..ld09; r/w; range 0..100, step 1 | |
| parameters | color wheel | ld00_color_wheel | ld00..ld09; r/w; 0-rgb mode, 1-white temperature |
| ld00_config_req | ld00..ld09; w/o; 1-request to set color wheel | ||
| color cycling | ld00_color_cycling_enable | r/w; 0-off, 1-on | |
| evo light | evo_light_enable | r/w; 0-off, 1-on | |

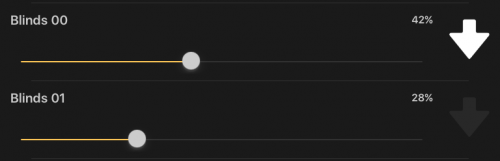

Blinds
| condition | bc00_general_error=0 (bc00..bc09) | ||
|---|---|---|---|
| object | 5x blinds | ||
| id | b00..b49 | ||
| name | “Blinds 00”..“Blinds 49” | ||
| description | “Blinds position control” | ||
| variable | toggle | bc00_qxs00_up, bc00_qxs00_dn | bc00..bc09, qxs00..qxs04; r/o; 0-stopped, 1-moving |
| slider | bc00_blinds_setpoint_00 | bc00..bc09, index 00..04; r/w; -2=toggle move/stop, -1=stop, 0=top, 100=bottom | |
| parameters | / | ||

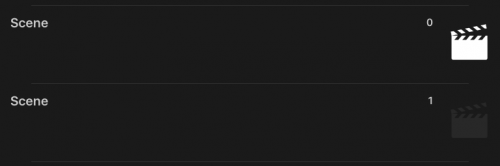

Scene
| condition | none | ||
|---|---|---|---|
| object | 10x scene | ||
| id | s00..s09 | ||
| name | “Scene” | ||
| description | “Scene apply and memorize.” | ||
| variable | toggle | current_scene[0] | index 0..9; r/o; -1=not defined, 0=off, 1=on |
| set | global_scene_request | w/o; -1=idle, 0..31=scene number | |
| memorize | global_memory_request | w/o; -1=idle, 0..31=scene number | |
| parameters | scene number | internal | 0..31=scene number |
Alarm
| condition | none | ||
|---|---|---|---|
| object | alarm | ||
| id | a00 | ||
| name | “Alarm” | ||
| description | “Burglar alarm with 4 zones.” | ||
| variable | state | alarm_state | r/o; 0=off, 1=arming, 2=armed, 3=activating, 4=active, 5=expired |
| toggle request | alarm_onoff_req | w/o; 1=request to toggle on/off | |
| arming counter | alarm_arming_counter | r/o; countdown to 0 | |
| delay counter | alarm_delay_counter | r/o; countdown to 0 | |
| active counter | alarm_active_counter | r/o; countdown to 0 | |
| parameters | zone enable | alarm_zone_enable[0] | index 0..3; r/w; 0=disabled, 1=enabled |
Thermostat
| condition | th00_general_error=0 (th00..th09) | ||
|---|---|---|---|
| object | thermostat | ||
| id | t00 | ||
| name | “Thermostat 0” | ||
| description | “Temperature and fan settings” | ||
| variable | active | th00_active | r/w; 0=idle, 1=active |
| setpoint | th00_setpoint | r/w; Main setpoint [*0.1°C], used when thermostat is active. | |
| temperature | th00_temperature | r/o; Measured temperature (internal, external or remote) [*0.1°C]. Measurement is adjusted for given offset. | |
| humidity | th00_humidity | r/o; Measured relative humidity (0..100%rh). | |
| fan limit | th00_fan_limit | r/w; Fan speed limit: 0-off (0), 1-auto 1 (0/1), 2-auto 2 (0/1/2), 3-auto 3 (0/1/2/3), 4-max (3). | |
| parameters | setpoint limits | th00_setpoint_lo | r/o; Setpoint low limit [*0.1°C]. Valid for both local and remote adjustment. |
| th00_setpoint_hi | r/o; Setpoint high limit [*0.1°C]. Valid for both local and remote adjustment. | ||
| fan options | th00_fan_options | r/o; Available fan options: b0-off (0), b1-auto 1 (0/1), b2-auto 2 (0/1/2), b3-auto 3 (0/1/2/3), b4-max (3). | |
| mode | hvac_mode | r/o; Hvac mode: 0-off, 1-heating, 2-cooling. | |
