Access control

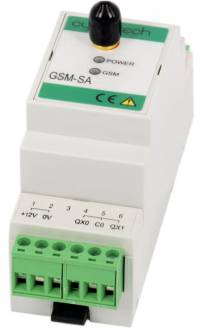

GSM modem
| Model number: | GSM-SA |
|---|---|
| Mounting: | Cabinet; DIN rail 2M |
| Dimensions: | 36x117x70mm |
Applications
- Access control
- Heating/cooling/device switching
- Alarm signalling
Features
- activate a function with a call (free of charge, call is denied)(i.e. open garage door with a call)
- activate a function with SMS message
- call predefined number(s) when condition is met (i.e. call for burglary alarm)
- send alarm SMS message to predefined number
- read/check state with SMS message
Manual
Download GSM-SA User Manual
Technical specification
| Antenna | internal or external |
| Connector | SMA with automatic switch |
| Analog inputs range | 0..10V (10 bit ADC, 0..1023) |
| Internal pull-up | 6V/1mA |
| Output type | relay contacts, normally open |
| Load | max. 3A/30VDC/250VAC, resistive |
| Quad band | GSM/GPRS 850/900/1800/1900 MHz |
| Performance | class4 (2W) for 850/900 MHz |
| class1 (1W) for 1800/1900 MHz | |
| Power supply | 12V(10-16V)/150mA (standby)/200mA (active) |
| IEX-2 baud rate | 20, 50, 100, 250, 500kbps, auto selectable |
| Operation temperature | 0..50°C, 0..85% rh non-condensing |
| Mounting | DIN rail 2M (35mm) |
| Weight gross | 150g |
| Enclosure protection | IP20 |
| Level of ambient pollution | 2 |
| Standards | EN 301489-1, EN 301489-7, EN 301511, EN 61131-1, EN 61131-2, EN 50090-2-2, EN 60950-1 |
