• Relatively small space with a few lights
• Normally, a motion sensor with auto-off timer is used, which has major drawbacks:
  • The light turns off if we are relatively still in the room
  • The light only turns on when we enter the room - it is uncomfortable to enter a dark room

• By taking into account the condition of the door, it ensures reliable and comfortable operation in most cases:
  • The lights come on as soon as the door is opened
  • Avoid switching off the lights in actual presence (you cannot leave the room through a closed door)
  • Proper operation even when the door is open
  • Taking into account daylight without a physical sensor

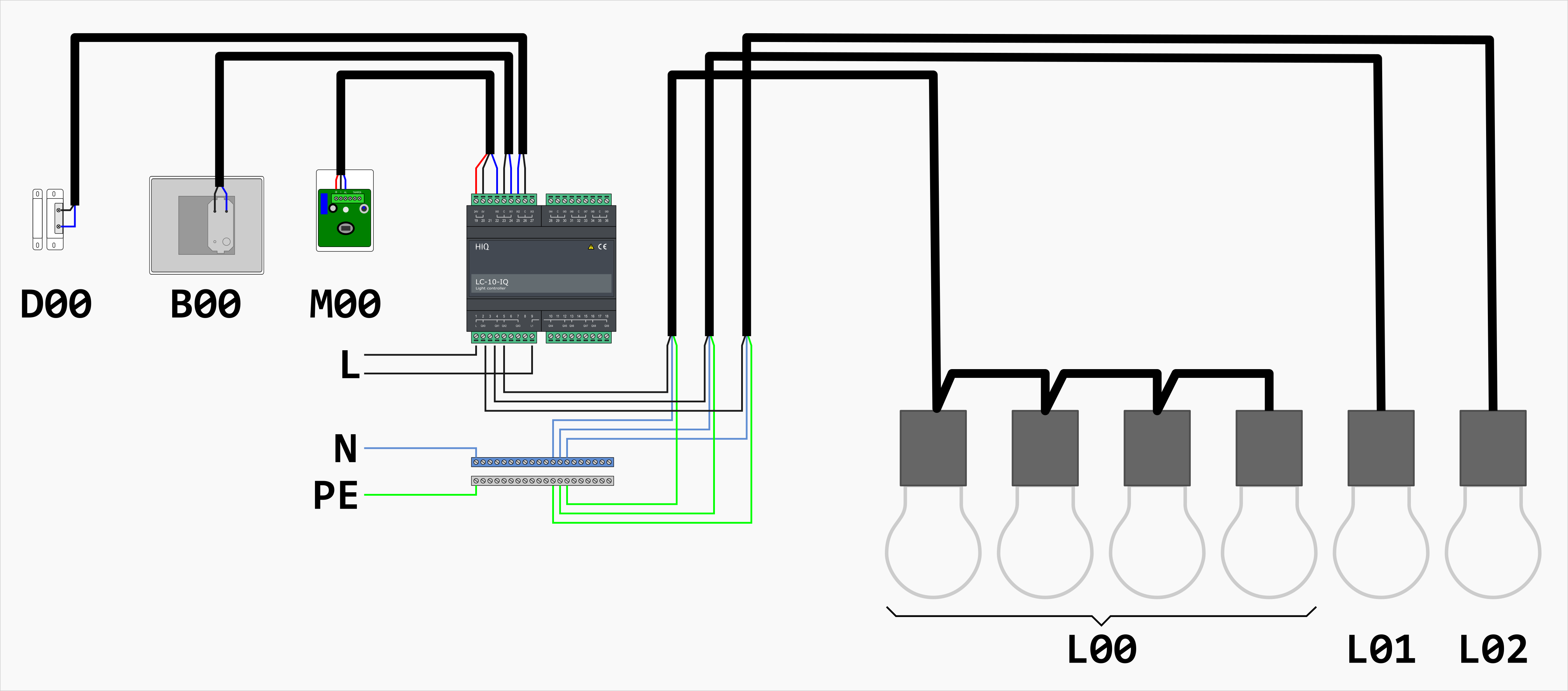

1. Clear all default inputs functionalities
2. Set Scene 00 (L00 → ON, L01 & L02 → OFF)
3. Set Input 00 (motion sensor) to time-extend for Scene 00
4. Set Input 02 (door open sensor) to inverse for Scene 00
5. Set Input 01 (push-button) to toggle for Light 02
6. Set Time-out for Scene 00 to 5 min (to be taken into account when the door is open)
7. Save settings to permanent memory
