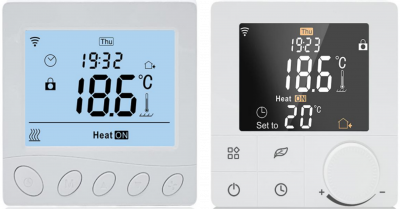

Electronic thermostat

Model number: TH-MM-S-X
Mounting: In-wall flush box
Dimensions: 86×86×40 mm


  • room / zone thermostat


  • cooling/heating
  • fan options:
    • 3 speed
    • hand/auto
    • weekly
  • modulating valve control
  • Modbus optional

General description

Can be used for any heating and/or cooling system including: fan-coils, hot water or electrical radiators, ceiling fans, floor/ceiling heating/cooling, split AC. TH series provide maximum comfort and energy saving functionality. Set-points are selectable on the unit or through other devices. Advanced functionality including smart-phone operation, internet operation, scheduling, HIQ automations, automatic weather response and more are provided when connected to HIQ Home Controller and HIQ universe.

Technical specification

Temperature measurement: NTC3950,10K
Power supply: 95-240V,50/60Hz
Ingress protection: IP20
Operating temperature: 0..45°C
Storage temperature: -20..75°C
Dimension: 86 mm x 86 mm x 40 mm
Relative humidity: 0..95% n/c
Installation box: EU 60Round box Or 86 Box
